If you’ve worked in chemical processing, pharmaceuticals, food manufacturing, energy production, or just about any heavy industry, you’ve encountered heat exchangers. They’re everywhere—and for good reason. Heat exchangers increase plant energy efficiency, reduce operating costs, and directly impact product quality.
Yet despite how common they are, many licensed engineers outside the process disciplines have only a surface-level understanding of how heat exchangers work and, more importantly, how to make sound decisions about their design and operation. This post breaks down the fundamentals of shell-and-tube heat exchangers (S&THEs)—the most common type in industrial settings—including how they work, what governs key design decisions, and what process engineers should know about keeping them running reliably.
Heat Exchanger Fundamentals at a Glance:
- Shell-and-tube heat exchangers (S&THEs) are the most common type in industrial settings, used across chemical processing, pharmaceuticals, food manufacturing, and energy production.
- The six main S&THE types—heat exchangers, coolers, condensers, preheat exchangers, reboilers, and vaporizers—each serve a specific thermal duty.
- One of the most consequential design decisions is which fluid goes on the shell side vs. the tube side, driven by fouling potential, corrosiveness, and maintenance access.
- Key components—tube bundles, tubesheets, floating heads, transverse baffles—each play a distinct role in heat transfer performance and equipment longevity.
- Operations and maintenance practices (backflushing, cooling water temperature limits, proper startup sequences) directly impact equipment lifespan and safety.
- Gasket selection is a critical and frequently underestimated factor in heat exchanger reliability—the wrong spec can cause leaks as surely as a design flaw.

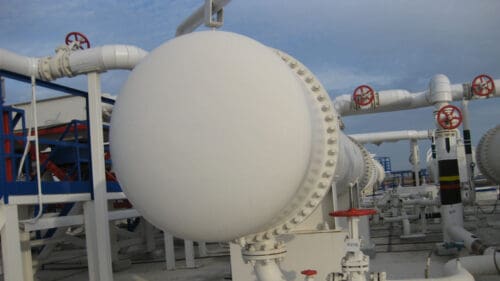

What Is a Shell-and-Tube Heat Exchanger?
At its core, a shell-and-tube heat exchanger transfers heat between two fluid streams without allowing them to mix. One fluid flows through a bundle of tubes, while the other flows around the outside of those tubes within a larger cylindrical housing called the shell. Heat moves through the tube walls from the hotter fluid to the cooler one.
S&THEs come in several functional varieties:
- Heat Exchangers – transfer heat between two process streams of different temperatures
- Coolers – reduce the temperature of a process stream, typically using cooling water
- Condensers – convert vapors or gases into liquids
- Preheat Exchangers – heat a process stream before it enters a vessel, often with bypass lines built in so the unit can be taken offline without shutting down the whole process
- Reboilers – found in distillation operations, convert liquid back into vapor
- Vaporizers – convert liquid process streams to vapor
Each type is selected based on the specific thermal duty it needs to perform. Choosing the wrong type for the application is not only inefficient but also a safety issue.
Shell Side vs. Tube Side: One of the Most Critical Design Decisions
One of the more nuanced judgment calls in heat exchanger design is deciding which fluid goes on the shell side and which goes on the tube side. There are no absolute rules, but there are well-established engineering guidelines that experienced PEs rely on.
Route to the tube side:
- Cooling water — because it has a high potential for scaling and corrosion, and the tube bundle internals are far easier to clean than the shell interior
- Steam — for similar reasons
- Corrosive feed streams — the tube bundle is cheaper to replace than the shell
- High-viscosity or dirty materials — again, cleaning access drives this decision
Route to the shell side:
- Vapors and gases — the shell provides more surface area for condensation, and the lower pressure drop on the shell side is advantageous
- Boiler feed water — needs more surface area when vaporizing from water to steam
Getting this decision wrong can accelerate fouling, increase maintenance frequency, and create contamination risks. In hydrocarbon systems, a tube leak that allows high-pressure product to mix with low-pressure product stream can create explosive or flammable scenarios.
Key Components You Need to Know
Understanding the vocabulary of shell-and-tube exchangers is non-negotiable for any PE who will be reviewing designs, managing projects, or working around this equipment.
Tube side components:
- Tube Bundle — the removable assembly containing the heat transfer tubes
- Tubesheet — provides rigid support for the tube bundle
- Floating Tubesheet / Floating Head Cover — allows the tube bundle to expand and contract with thermal changes, preventing tube damage
- Head Cover — caps the end of the tube sheet to contain tube-side fluids
Shell side components:
- Shell — the fixed cylindrical housing, mounted on a slotted base plate to allow for thermal expansion
- Bonnet (Head Cover) — caps the shell side to contain shell-side fluids
- Transverse Baffles — vertical obstructions inside the shell that force the shell-side fluid to change directions repeatedly, creating turbulence that dramatically improves heat transfer efficiency
Tube configurations vary as well. Straight tubes with a floating head are the simplest and easiest to maintain. U-tube configurations simplify thermal expansion management and reduce tube-to-tubesheet joints. Bowed tubes have a self-cleaning advantage in services with large thermal cycles—scale flakes off as the tubes expand and return to shape.
Parallel vs. Series: When One Exchanger Isn’t Enough
In many industrial applications, a single heat exchanger won’t suffice. When multiple units are required, the engineer must decide between a parallel arrangement (flow splits between exchangers) or a series arrangement (flow passes through exchangers sequentially).
The right choice depends on the required heat transfer rate, available plot space, and equipment cost. Split systems can combine elements of both.
This decision also affects long-term operations. Parallel units give you redundancy; series units can achieve greater total heat transfer. Neither is universally “better”—it depends entirely on the specific process parameters.
Operations and Maintenance: What PEs Often Underestimate
Heat exchangers require ongoing attention to perform reliably. A few O&M principles every PE should understand:
- Cooling water outlet temperatures should stay below 120°F. Above this threshold, fouling, scaling, and corrosion inside the tubes increase significantly.
- Backflushing must be done routinely. Backflushing—reversing water flow through exchangers operating on cooling water—removes dirt, scale, and silt from tube walls before they become a performance problem.
- Minimum flow velocities must be maintained. Extremely low flows cause fouling. High-velocity flows cause thermal shock. Both are managed through well-written standard operating procedures.
- Startup sequence matters. The cooling stream must always be introduced before the hot process material. Skipping this step can damage internal components.
- Steam traps and level control devices on steam-heated exchangers must be maintained. Bypassing them wastes energy and reduces overall heat transfer.
- Chemical treatment of water must be maintained. If you are using any type of water as a medium exchange treatment with biocides, anti-corrosion, anti-scaling, and pH control is essential.
Poor maintenance hurts efficiency—it shortens equipment life and creates safety and environmental risks.
The Role of Gaskets: A Critical and Often Overlooked Piece of the Puzzle
Here’s where many engineers stop short. They understand the exchanger design well enough, but underestimate the role that gaskets play in the reliability of the entire system.
Heat exchangers are loaded with gasketed joints—at the shell flanges, head covers, nozzles, and tube-side connections. Gaskets in heat exchanger applications often face some of the most demanding conditions in a plant: extreme temperatures, pressure cycling, corrosive media, and frequent maintenance pull-and-reinstall cycles.
Selecting the wrong gasket type or material for those conditions is a common—and often costly—failure point.
Double-jacketed gaskets, for example, are frequently used in heat exchanger applications because they can withstand chemical aggression and mechanical stress. Kammprofile gaskets are another type commonly found on heat exchangers, valued for their ability to maintain a tight seal even where flange faces aren’t perfectly flat.
Corrugated metal gaskets are another option used in specialty heat exchanger flanges, though they require specific engineering consideration.
Selecting the right gasket requires knowing far more than just temperature and pressure. Chemical compatibility with the process fluid, flange face finish quality, sealing force requirements (bolt torque requirements), and material metallurgy all factor into the decision.
An improperly specified gasket—or one that’s correctly specified but improperly installed—will leak just as surely as the wrong gasket type altogether.
In addition, many exchanger bolt configurations must be retorqued after startup to ensure a secure fit. Periodic inspections, especially after a unit emergency shutdown, require re-torquing of bolts.
Go Deeper—And Earn PDH Credits While You’re at It
If this post sparked questions about gasket selection, sealing fundamentals, or how to approach bolted joint integrity in your next design review, that’s exactly the gap McKissock’s Fundamentals of Gaskets for Professional Engineers PDH course is built to fill.
The course covers:
- Gasket classification
- Basic design characteristics
- Identification markings
- Proper installation techniques
- Troubleshooting leaks
- How to work effectively with manufacturer-suppliers to spec the right gasket the first time
It’s ASME and API-aligned, and it counts toward your continuing education hours—a practical investment for civil, mechanical, chemical, and electrical instrumentation engineers alike.
Need PDH credits? Browse McKissock’s wide selection of professional engineering courses, including Fundamentals of Gaskets for Professional Engineers.
Heat exchangers are deceptively complex systems that intersect thermal engineering, materials science, process operations, and mechanical integrity. The more fluency you build across all of those domains, the better your design reviews, project decisions, and engineering judgment will be.
