As urbanization intensifies, effective stormwater management has become paramount. For professional engineers, mastering storm water drain design calculations is essential to ensure infrastructure resilience, regulatory compliance, and environmental stewardship. This blog provides a detailed overview of storm water drain design calculations, with insights into best practices and established methodologies.

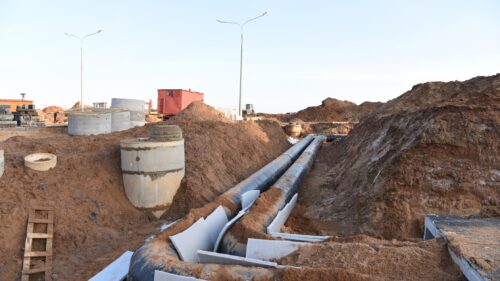

Understanding Storm Water Drain Design Calculations
Storm water drain design calculations involve determining the size, capacity, and layout of drainage systems to manage surface runoff effectively.
These calculations aim to:
- Assess Runoff Volume and Rate: Estimating the amount and speed of water runoff from a given area.
- Determine System Capacity: Ensuring that drains can handle peak flow rates without surcharging.
- Design Infrastructure Components: Sizing pipes, inlets, and other components to meet design criteria.
Accurate design calculations help mitigate flooding, reduce erosion, and promote sustainability.
Why Are Storm Water Drain Design Calculations Important?
1. Flood Prevention
Proper calculations ensure that drainage systems handle peak runoff during significant rain events or design storms, preventing water from accumulating and causing property or infrastructural damage.
2. Environmental Protection
Control of storm water is vital for minimizing erosion, sediment transport, and the entry of pollutants into nearby water bodies.
3. Regulatory Compliance
Accurate calculations align with regulatory frameworks, such as local water management guidelines and environmental quality standards.
4. Cost Efficiency
Well-designed systems avoid over- or under-sizing, ensuring efficiency in both initial construction costs and long-term maintenance.
How to Perform Storm Water Drain Design Calculations
Below are the key steps and considerations for successfully calculating and designing storm water drainage systems.
1. Data Collection and Preliminary Assessment
Start your design with thorough data gathering that ensures accuracy and precision.
- Site Survey: Analyze topographical data, land contours, and drainage conveyance compositions.
- Rainfall Data: Obtain historical rainfall intensity and duration, typically expressed in Intensity-Duration-Frequency (IDF) curves.
- Land Use Assessment: Determine the impervious surfaces (e.g., rooftops, roads) contributing to runoff.
2. Runoff Calculations
Runoff estimation is crucial for determining the volume of water the drainage system must handle. Use one of these methods based on the area size and characteristics:
Rational Method (For smaller areas <200 acres)
\[ Q = CiA \]
Where:
- Q = Peak runoff rate (cfs or m³/s)
- C = Runoff coefficient (varies by land type, e.g., 0.9 for pavement, 0.15 for grassland)
- i = Rainfall intensity from IDF curves (in/hr or mm/hr)
- A = Drainage area (acres or hectares)
SCS/NRCS Curve Number Method (For larger areas)
\[ Q = \frac{(P – 0.2S)^2}{P + 0.8S} \]
Where:
- P = Precipitation Depth
- S = Maximum potential retention, derived from the curve number (CN).
3. Hydraulic Design
Once runoff values are calculated, the system’s hydraulic capacity must be designed.
Pipe and Gutter Sizing
Use Manning’s Equation for determining pipe or open channel flow capacities.
\[ Q = \frac{1.49}{n} A R^{2/3} S^{1/2} \]
Where:
- n = Roughness coefficient (e.g., 0.013 for concrete pipes)
- A = Cross-sectional area of flow
- R = Hydraulic radius
- S = Slope of the channel or pipe’s hydraulic grade line
Time of Concentration (Tc)
Calculate the time it takes for water to travel from the farthest point in the drainage area to the exit-point. Add time of entry and time of flow values. This is a critical step. High absorption soils with flatter slopes will increase the time of concentration. Steeper slopes constructed of concrete will reduce the time of concentration. The drainage conveyance composition and the slope can significantly impact the time of concentration.
Kerby-Hathaway Method
Tc = 0.828 ⋅ (n ⋅ L / (H) ⋅ 0.5)^0.467
- n = roughness coefficient (accounts for conveyance compositions i.e. soil, grass, forest, urban-concrete or asphalt)
- L = flow length (ft)
- H = elevation difference (ft)
Manning’s Channel Flow Method:
Tc = L / (60 ⋅ V), Where V=(1.49/n) ⋅ (R^2/3) ⋅ (S^½)
- L = flow length (ft)
- R = hydraulic radius (area/wetted perimeter)
- S = slope (ft/ft)
- n = Manning’s roughness coefficient
4. Detention/Retention Basin Design
For excess runoff, detention and retention systems are critical components. Use the following equations for volume sizing and outlet structures:
- Volume Calculation
Size basins to hold calculated runoff based on site-specific design storm values.
- Orifice Equation for Basin Outlets
\[ Q = Cd A \sqrt{2gH} \]
Where:
- Cd = Discharge coefficient (typically 0.6)
- A = Orifice cross-sectional area
- H = Head height
5. Climate Change Adjustments
Add a margin for increased rainfall or storm intensity due to climate variability (typically 15-20%). This ensures the system remains effective under changing climate conditions.
Tools and Resources for Professional Engineers
Several tools can support precise calculations, improve speed, and simulate various storm scenarios:
- EPA National Stormwater Calculator
Web-based application for runoff estimation integrating green infrastructure solutions.
- Hydraulic Modeling Software
Explore solutions like HEC-RAS, SWMM, and MIKE URBAN for complex drainage design and analysis.
- Online Drainage Calculators
Use platforms like NDS’ Drainage Calculator for preliminary drainage pipe and catchment sizing.
Best Practices in Stormwater Drain Design
- Adhere to Local Regulations: Ensure designs comply with local stormwater management codes and standards.
- Incorporate Green Infrastructure: Utilize practices such as bioswales, rain gardens, and permeable pavements to enhance infiltration and reduce runoff.
- Consider Climate Change: Account for potential changes in precipitation patterns and intensities due to climate change in design calculations.
- Implement Safety Factors: Apply safety factors to account for uncertainties in design parameters and ensure system reliability.
Final Thoughts and Learning Opportunities
Proficiency in storm water drain design calculations is essential for professional engineers to create effective, sustainable, and compliant drainage systems. By understanding and applying the appropriate methods and utilizing available tools and resources, engineers can enhance their designs and contribute to resilient urban infrastructure.
